This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Q1：Are you the real manufacturer?
A1：Yes. We are the real manufacturer with 15+ years'history.Have the best price from the factory.
Q2：Can you put my brand name (logo) on these products?
A2：Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q3：Can you accept small order?
A3：Yes, small order is available .We support new project of our customers as we know business is always from small order.
Q4：Can you provide us more other products to us to help us to save more shipping costs?
A4: Yes. OPGW cable,ADSS cable,ACSR Cable,FTTH Drop cable,outdoor fiber cable,indoor fiber cable,fiber cable Accessories,patch cord,pigtail,Air blow fiber cable is the main products line of Factory.
Q5：What is your delivery time?
A5：Usually within 10 working days.
Q6：What about your annual production capacity?
A6：Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
If you have any questions, please contact us by email and we will contact you as soon as possible. We look forward to your inquiry.

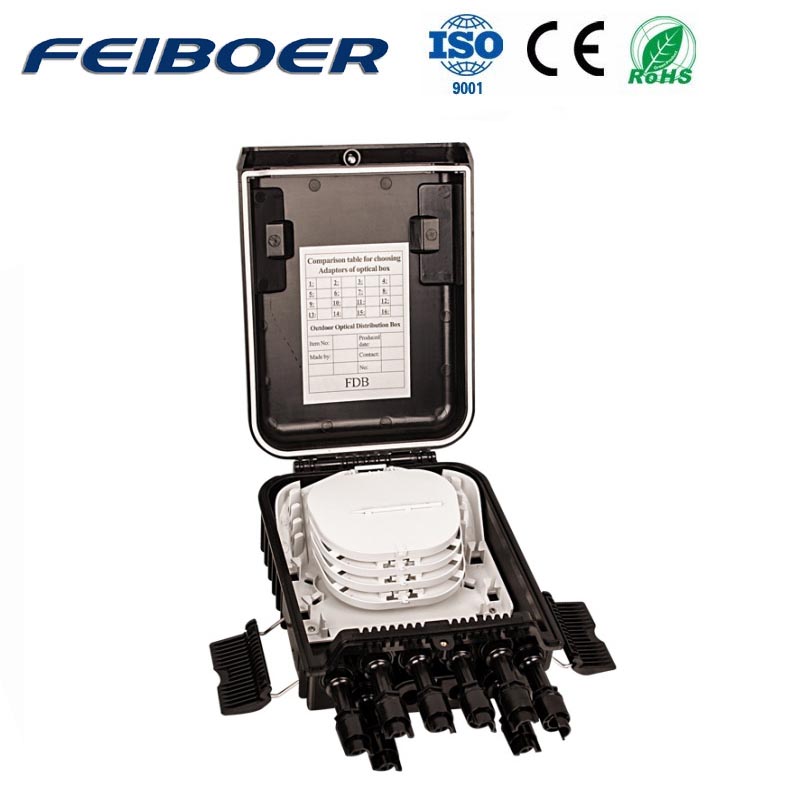

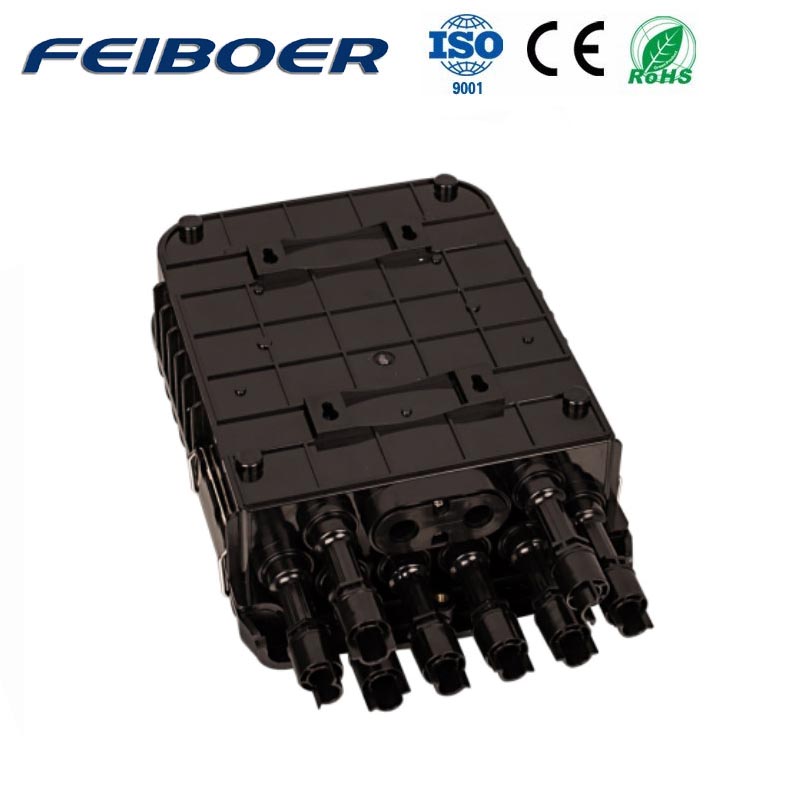

This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.
It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
1.Total enclosed structure.
2.Material: ABS, wet-proof、water-proof、dust proof、anti-aging, protection level up to IP65.
3.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
4.Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor .installation, easy maintenance.
5.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6.Box can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor uses.
Wall mounting and pole mounting installtion FTTH pre-installation and filed installation
5-10mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure FTTH self-supporting drop cable
Screw: 4mm*40mm 4pcs
Expension bolt: M6 4pcs
Cable tie:3mm*10mm 6pcs
Heat-shrink sleeve:1.0mm*3mm*60mm 8pcs
Nos of PLC
Nos of Adaptor
Splice 96 Fibers
1pcs of 1x8 PLC
8 pcs of SC(max)
2 in 8 out
