In the communication industry, ADSS optical cable and OPGW optical cable have been fully used. It is also since the advent of optical fiber, it immediately got great interest from the power sector. Now many of them have become new telecom operators, which is because they have tower resources. ADSS cable or OPGW cable above, both need to be able to use for a long time, the required material quality is good, must find a regular manufacturer production.

ADSS cable and OPGW cable is different

1. Different structures.

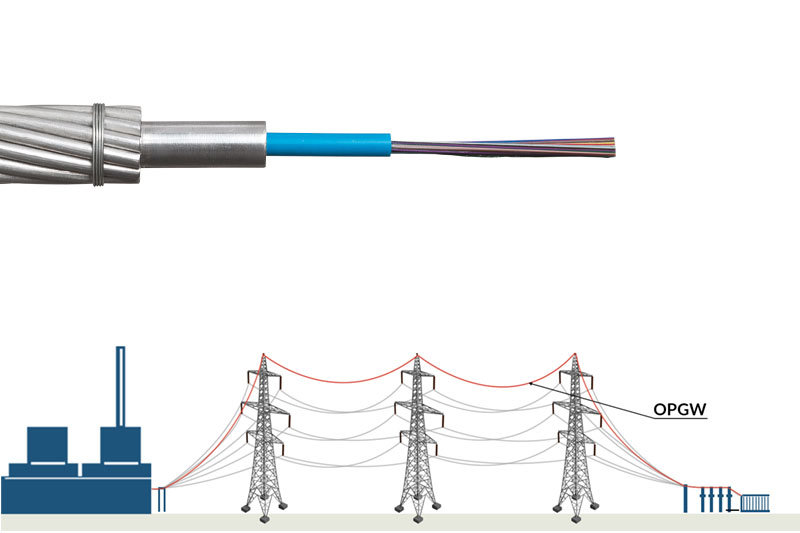

The OPGW cable consists mainly of a cable core (optical fiber unit) containing optical fiber and a metal strand (including aluminum clad steel wire). Galvanized steel wire. Aluminum alloy wire. Duralumin wire). So far, hundreds of different structures have appeared, and there are three main types.

Aluminium tube type. Aluminium frame. Pipe type. Steel tube type.

ADSS optical cable is mainly composed of cable core, reinforcing wire (or other appropriate material) and outer sheath. The various structures of ADSS optical fiber and cable can be summarized into two representative structures. Mainly center tube type, layer stranded type.

2. Technical specifications.

Rated tensile strength (RTS)

Also known as tensile strength or breaking force, it refers to the calculated value of the sum of the strength of the bearing section (ADSS mainly calculates arylon). RTS is an important parameter for the configuration and calculation of safety factor of the hardware (especially the tensioning clip).

Maximum tensile strength (MAT)

Also, the maximum tension of OPGW and ADSS can be calculated according to the designed meteorological condition theory. MAT is an important basis for calculating and controlling sag, tension, span and safety factor.

Daily mean operating tension (EDS)

Also known as the annual average working tension, is the OPGW and ADSS in the long-term working process of the average tension.

Dc resistance

That is, the calculated value of parallel resistance of all conductive components in OPGW at 20℃ should be as close to the opposite ground wire as possible. ADSS does not have this requirement.

Short-circuit current

OPGW refers to the maximum current that an OPGW can withstand when it is short-circuited (generally referred to as a single-phase pair). The results show that the start and end temperature of short circuit current is related to the time of short circuit current and should be as close to the actual situation as possible. ADSS does not have this requirement.

Short flow capacity.

Short circuit current squared and time multiplied by I2t. ADSS does not have this requirement.

The above is about the common power cable, adss cable and opgw cable brief introduction.
