What is ADSS Fiber Cable?
Release Date: 2023-01-05

ADSS (All Dielectric Self-Supporting) optical cable is also often called all-dielectric self-supporting optical cable. All-dielectric refers to the use of all-dielectric material for ADSS optical cable. The self-supporting type shows that the reinforcing member of the optical cable can withstand its own weight and external load. ADSS fiber cable is mainly used on power pole frames, so it is required to have high mechanical strength and be able to withstand the impact of strong electric environments. Feiboer will briefly introduce the structures and characteristics of ADSS optical cable.
The structure of ADSS optical cable

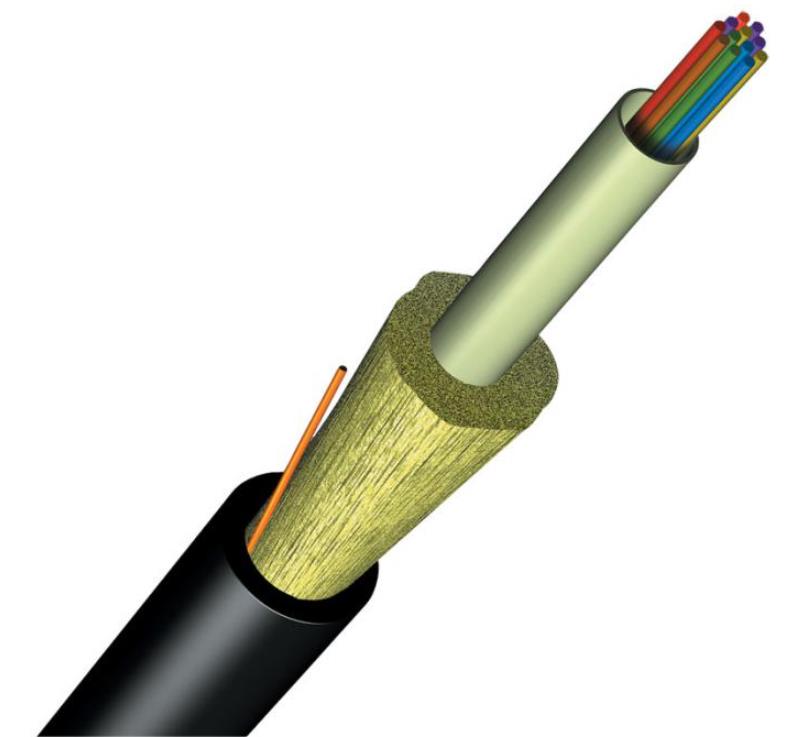

1.Central tube structure ADSS cable
In this structure of the ADSS optical cable, the optical fibers are placed in a PBT tube filled with water-blocking ointment with a certain excess length, and at the same time, a suitable spun yarn is wrapped according to the required tensile strength, and then extruded PE (≤110KV electric field strength) or AT (≥100KV electric field strength) sheath.

2.Layered twist structure ADSS cable
The layer-stranded structure ADSS optical cable is that the inner optical fiber and water-blocking grease are added into optical fiber loose tube at the same time, and then different loose tubes are wound around the central reinforcement (usually FRP). It also needs to be wrapped according to the requirements. The Kevlar yarn is finally extruded with PE or AT sheath. According to the environment condistion of ADSS cable laying, the ADSS cable can be produced with single layer of PE or AT sheath or double layers PE or AT sheath.
This structure of the ADSS optical cable loose tube and the central reinforcing member filled with grease is fully twisted together to ensure its waterproof performance, and according to different requirements, there are a variety of measures to resist lateral pressure.

Compared with two different structures of ADSS optical cables, the advantages of the central tube structure ADSS cable are: small diameter, light weight, good waterproof performance, low price, and easy installation. The layer-stranded structure has more laying methods, which are suitable for various occasions such as overhead, direct buried, pipeline, and underwater. The remaining length can be controlled easily and the number of fiber cores is more, but the price is also more expensive.
If you neen more information or support on fiber optical products, please don’t hesitate to contact us, we will try our best to support you.
