Blockless Mini PLC Splitters No Connectors
Release Date: 2020-11-23

Blockless Mini PLC Splitters No Connectors model is used for places that have little space such as FTTH boxes or patch panel and is offered in two types without connector and with connector so that you have more choices. This model without connector gives you the option to install any type of connector on it when running the project.

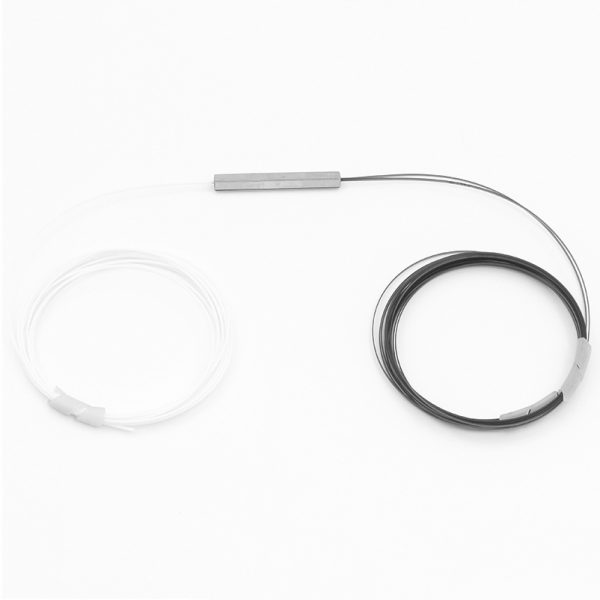

Blockless Mini PLC Splitters No Connectors

Blockless Mini PLC Splitters No Connectors The PLC splitters are used to separate or combine optical signals. A PLC (planar lightwave circuit) is a micro-optical component based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. PLCs are manufactured using silica glass waveguide circuits that are aligned with a v-groove fiber array chip that uses ribbon fiber. Once everything is aligned and bonded, it is then packaged inside a miniature housing. PLC splitters have high quality performance, such as low insertion loss, low PDL, high return loss, etc.



The Blockless Mini PLC Splitters No Connectors is a more recent technology. PLC splitters offer a better solution for larger applications. Waveguides are fabricated using lithography onto a silica glass substrate, which allows for routing specific percentages of light. As a result, PLC splitters offer accurate and even splits with minimal loss in an efficient package.The PLC splitter is a micro-optical element using photo lithographic techniques to form optical waveguide at medium or semiconductor substrate for realizing branch distribution function. Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.PLC splitter: Losses are not sensitive to the wavelength, spectral uniformity is higher, it is more compact and is lower cost with greater degrees of splitting. However, device fabrication process is more complex. Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device


Applications:

Fiber to The Point (FTTX)
Fiber to The Home (FTTH)
Passive Optical Networks (PON)
Gigabit Passive Optical Networks (GPON)
Local Area Networks (LAN)
Cable Television (CATV)
Test Equipment


Features:

Low insertion loss
Low Polarization Dependent Loss
Excellent Environmental Stability
Excellent Mechanical Stability
Telcordia GR-1221 and GR-1209


Options:

1×2, 1×4, 1×8, 1×16, 1×32, 1×64 splits
2×2, 2×4, 2×8, 2×16, 2×32, 2×64 splits
