The fast connectors or field assembly optical connector are pre-polished from factory with V groove mechanical splicing principal to be terminated without epoxy. It operates simply without any additional practices or adhesives for field installation.We provide LC, SC, FC singlemode, multimode fiber optic fast connector which is widely used in optical wiring, CCTV, FTTH projects.
Q1：Are you the real manufacturer?
A1：Yes. We are the real manufacturer with 15+ years'history.Have the best price from the factory.
Q2：Can you put my brand name (logo) on these products?
A2：Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q3：Can you accept small order?
A3：Yes, small order is available .We support new project of our customers as we know business is always from small order.
Q4：Can you provide us more other products to us to help us to save more shipping costs?
A4: Yes. OPGW cable,ADSS cable,ACSR Cable,FTTH Drop cable,outdoor fiber cable,indoor fiber cable,fiber cable Accessories,patch cord,pigtail,Air blow fiber cable is the main products line of Factory.
Q5：What is your delivery time?
A5：Usually within 10 working days.
If you have any questions, please contact us by email and we will contact you as soon as possible. We look forward to your inquiry.

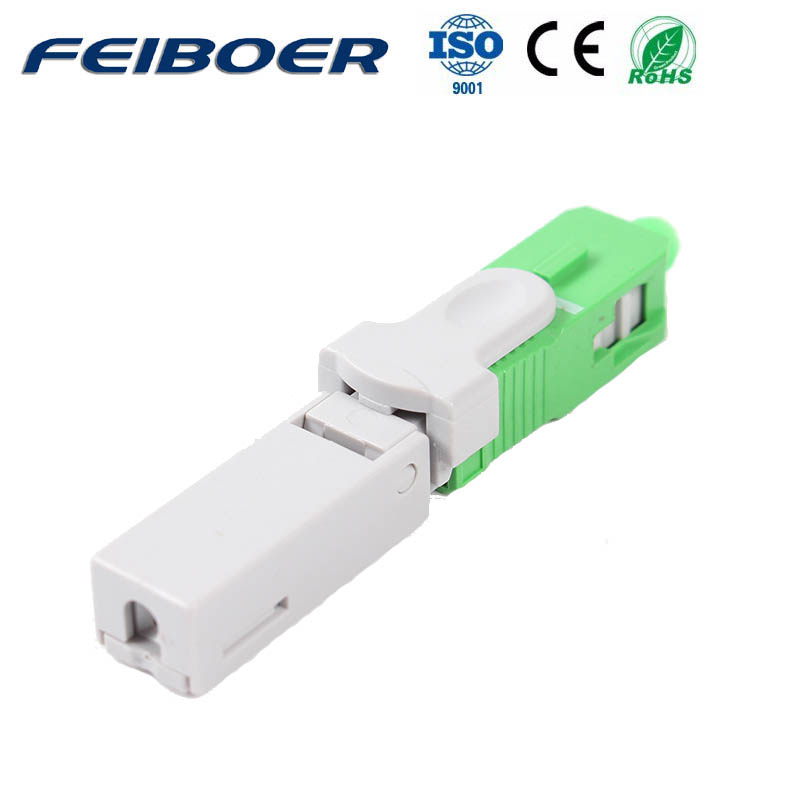

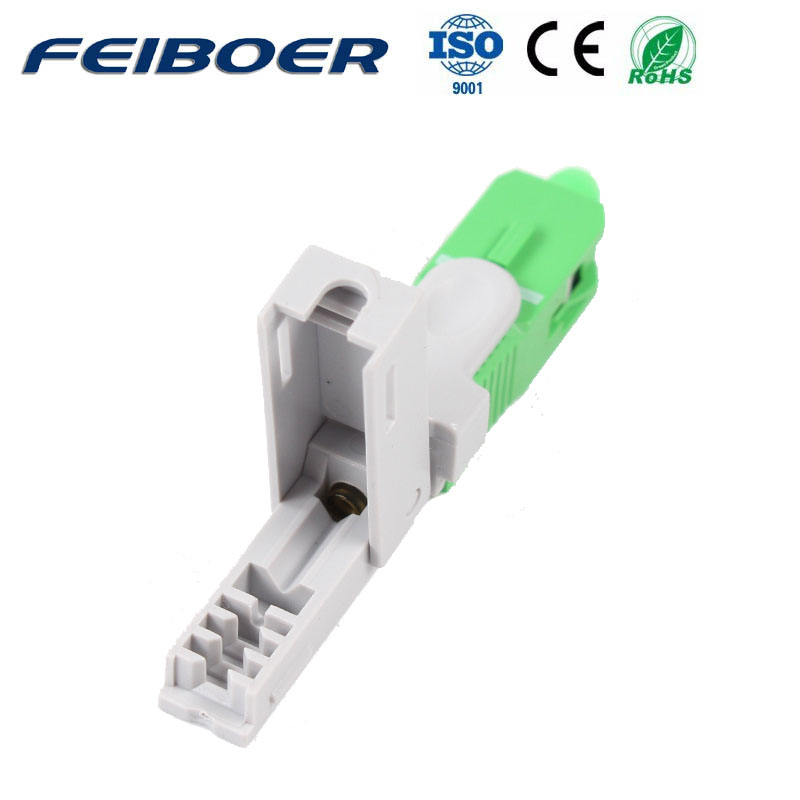

The fast connectors or field assembly optical connector are pre-polished from factory with V groove mechanical splicing principal to be terminated without epoxy. It operates simply without any additional practices or adhesives for field installation.
We provide LC, SC, FC singlemode, multimode fiber optic fast connector which is widely used in optical wiring, CCTV, FTTH projects.
Field installable in short time
Factory pre-installed fiber stub
No epoxy and polish required and without special tools to be used
Eliminates cable excess length and pigtail splice storage
Reliable and superior optical performance
UPC or APC endface polish, singlemode or multimode for option
FTTH access network
Local Area Networks
Optical repair or replacement requirement
Maintenance or emergency restoration of fiber networks
|Applicable for||Drop cable, Indoor cable|
|ptical fiber diameter and fiber||125um(G657A1&G657A2&G657B)|
|Tight buffer Diameter||250um|
|Fiber mode||Single mode or Multi mode|
|peration time||Sec||About 50(no fiber cut)|
|Insertion Loss||dB||≤0.3(max 0.5)|
|lnsertion Loss Typical value||dB||0.3|
|Fastening strength of naked fiber||N||≥5|
|perating Temperature||℃||-40~+85 ℃|
|on-line tensile strength(2ON)||dB||ΔIL≤0.3|
|Mechanical durability(500 times)||dB||ΔIL≤0.3|
|Drop-off test(drop-off height4m,|
once per direction, totally 3 times)
Environmental performance requirements
|Condition||lLl Variation||RL Variation||Appearance|
|High TEMP||110℃,200H||≤0.3||≤5||No mechanical|
damage, like d
acking and unti
|Salt Mist||5% Nacl,6.5<PH<|
Mechanical Performance Requirements
1 drop each axis;
l damage, like
cracking and u
|Vibration||Frequency: 10 ~50Hz;|
Sweep:45times / min ;
Duration:30min each axial
|Torsional||Pull:15N;The distance between|
Loading location and fast
connector: L = 22-28cm;
Rate:10times / min.
|Tensile||Pull : 50N;|
The distance between Loading locat
ion and fast connector:L= 22-28cm;
