Figure 8 Cable & Specifications

As a self-supporting aerial fiber cable, figure 8 fiber optic cable is a kind of fiber optic cable that is suitable for long-distance communication and inter-office communication. With steel stranded wire as the self-supporting part of the fiber optic cable, it can meet the very high tensile strength during installation and operation.

Figure 8 shape and steel wire messenger also save the installation costs. This cable is a small size figure 8 fiber optic cable. With advantages of light, flexible and easy to construction, it’s also one of the alternative cable for FTTH cabling network.

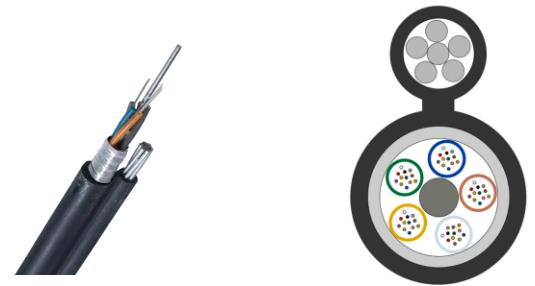

Layer Stranded Light-Armored Figure 8 Cable

❶ Stranded Wire ❷ PE Sheath ❸ Optical Fiber ❹ Tube Filling Compound ❺ Loose Tube ❻ Central Strength Member ❼ Cable Filling Compound ❽ APL Aluminum Tape ❾ PE Sheath

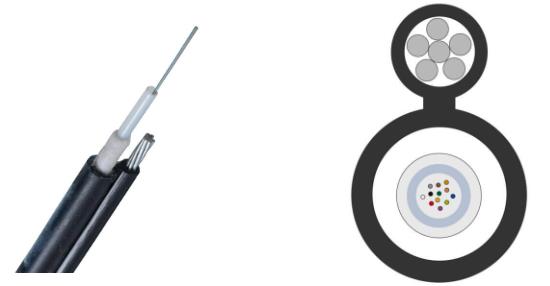

Uni-Tube Non-Armored Figure 8 Cable

❶ Stranded Wire ❷ PE Sheath ❸ Optical Fiber ❹ Tube Filling Compound ❺ Uni Tube ❻ Cable Filling Compound ❼ Water-blocking Material ❽ PE Sheath

On-Demand Materials & Specifications for Figure 8 Fiber Optic Cable

No matter what types or specifications of figure 8 fiber cables you want, based on our extensive experience, we can manufacture it.

1 – 288 Core                                   OS1, OS2…

G.652, G.657…                                OM2, OM3, OM4…

Single mode, Multimode               Armored, Non armored…

Unitube, MLT…                              Metallic, All dielectric…

Tensile, Crush, Span…                   1km, 2km, 4km…
