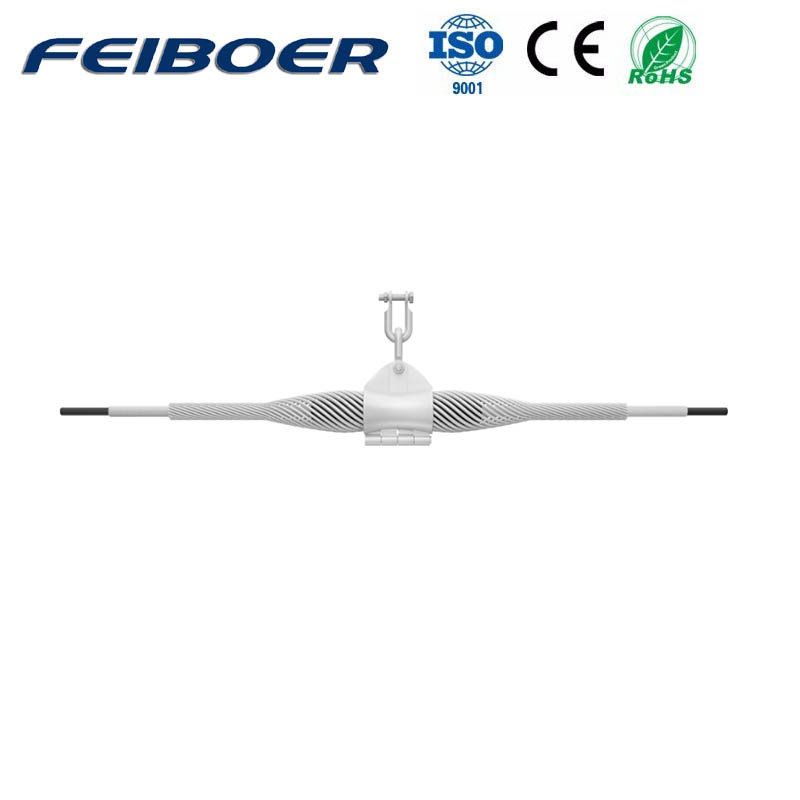

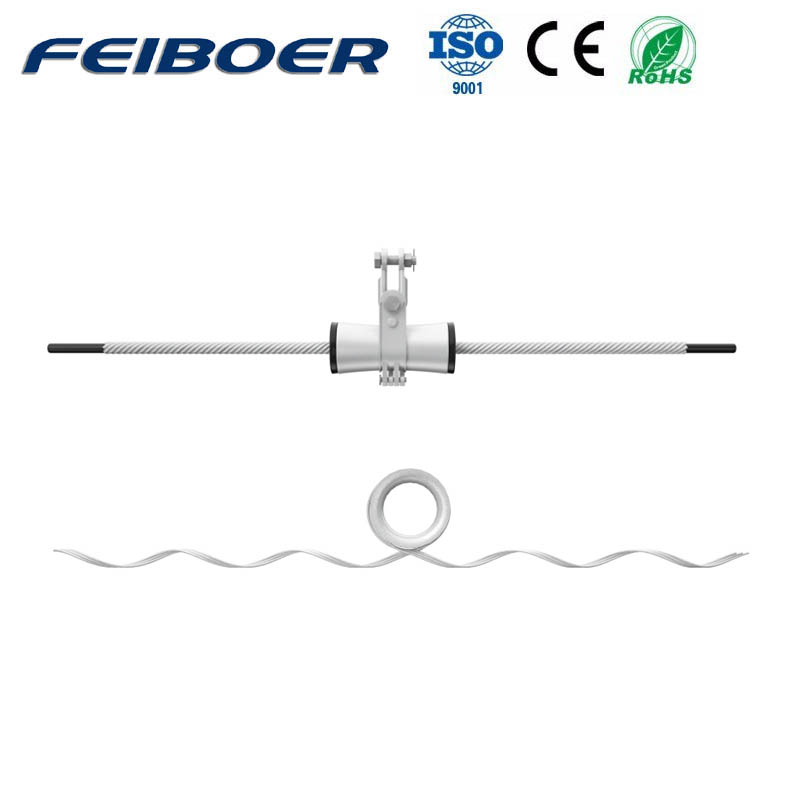

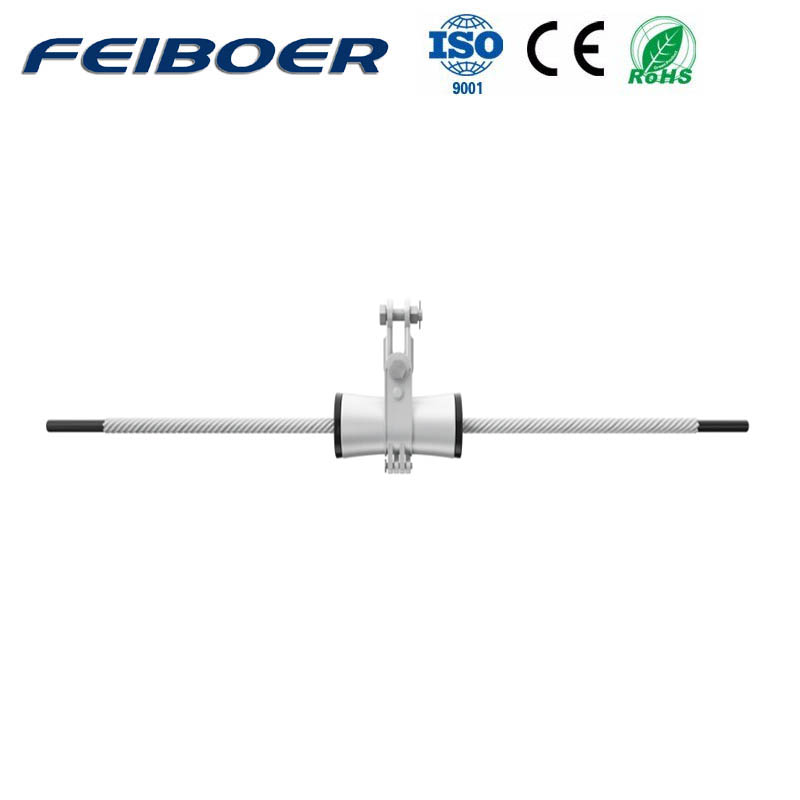

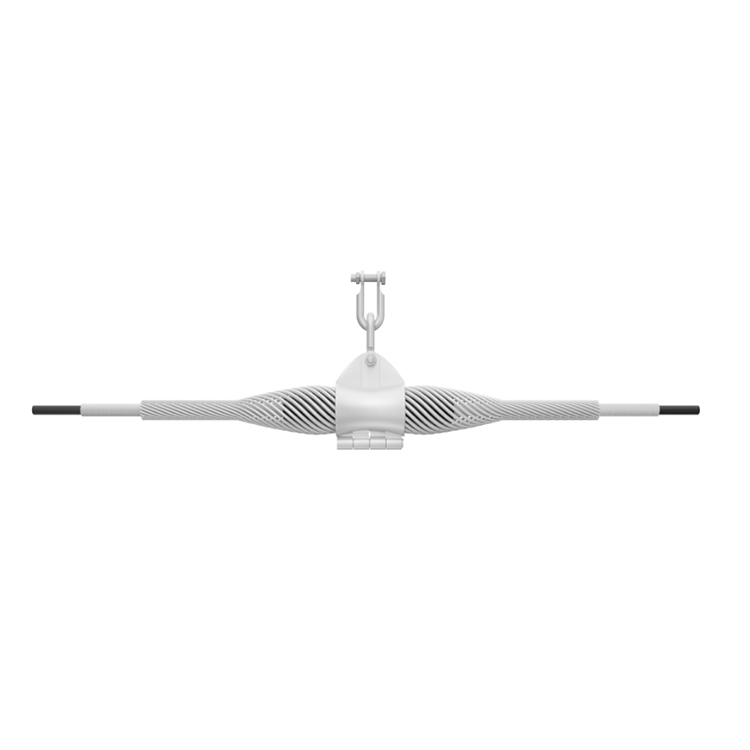

Tension Clamps are designed to connect ADSS cables and poles/towers. Armor rods can provide protection and cushioning to the ADSS cables. The special design of Preformed rods makes ensure that Tension Clamps can’t cause undue stress to the ADSS cables, so as to ensure the normal lifetime of cables system.
Q1：Are you the real manufacturer?
A1：Yes. We are the real manufacturer with 15+ years'history.Have the best price from the factory.
Q2：Can you put my brand name (logo) on these products?
A2：Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q3：Can you accept small order?
A3：Yes, small order is available .We support new project of our customers as we know business is always from small order.
Q4：Can you provide us more other products to us to help us to save more shipping costs?
A4: Yes. OPGW cable,ADSS cable,ACSR Cable,FTTH Drop cable,outdoor fiber cable,indoor fiber cable,fiber cable Accessories,patch cord,pigtail,Air blow fiber cable is the main products line of Factory.
Q5：What is your delivery time?
A5：Usually within 10 working days.
Q6：What about your annual production capacity?
A6：Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
If you have any questions, please contact us by email and we will contact you as soon as possible. We look forward to your inquiry.
Tension Clamps are designed to connect ADSS cables and poles/towers . Armor rods can provide protection and cushioning to the ADSS cables. The special design of Preformed rods makes ensure that Tension Clamps can’t cause undue stress to the ADSS cables, so as to ensure the normal lifetime of cables system.

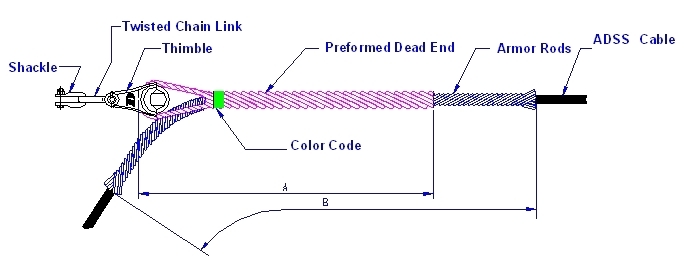

Structure and Raw Material:
Shackle--Hot dip galvanized steel. Shackle is connected with Reinforcing Pole units.
Twisted Chain Link--Hot dip galvanized steel. Twisted Chain Link is intended for connecting Shackle and Thimble.
Thimble---Hot dip galvanized cast steel. Thimble is plugged in shackle of Tension Clamp for protection and connection.
Armor Rods----- Aluminum clad steel wire. Armor Rods increase friction with a layer of particle emery inside to cables. Rods are assembled into four subsets in workshop which reduce misalignment errors and speeds installation. The ends are bent outward to provide stress relief at the critical cable departure areas.
Preformed Dead End -- Preformed Dead End are made of hot dip galvanized steel wire or aluminum clad steel wire, it is assembled into one subset with a layer of firm emery inside in workshop for increasing grip strength of Tension Clamps while decreasing side pressure.
1. It is designed to connect continue pole (tower) and Terminal pole(tower), tensile pole or line angles above 25。 Pole (tower). The special specification: one unit per Terminal pole (tower), two units per tensile pole (tower), two units per continue pole (tower).
2. You can select the Specification Model corresponding to the appropriate cable diameter range, maximum allowable tension (MAT) or Span Length from Data Sheet.
Middle and Low Tensile Force Tension Clamp for ADSS Cable
Recommended Span Length：≤200m
Suitable Cable Diameter (mm)
Armor Rod Length (mm)
Dead end Rod
ANF 0900 020
ANF 1000 020
ANF 1110 020
ANF 1220 020
ANF 1330 020
ANF 1440 020
ANF 1550 020
ANF 1660 020
ANF 1770 020
ANF 1880 020
One set of Tension Clamp includes a unit of Armor Rods, a unit of Dead End Rods, an Shackle U-4, A Twisted Chain Link ZH-4 and a Thimble NHG-040.
