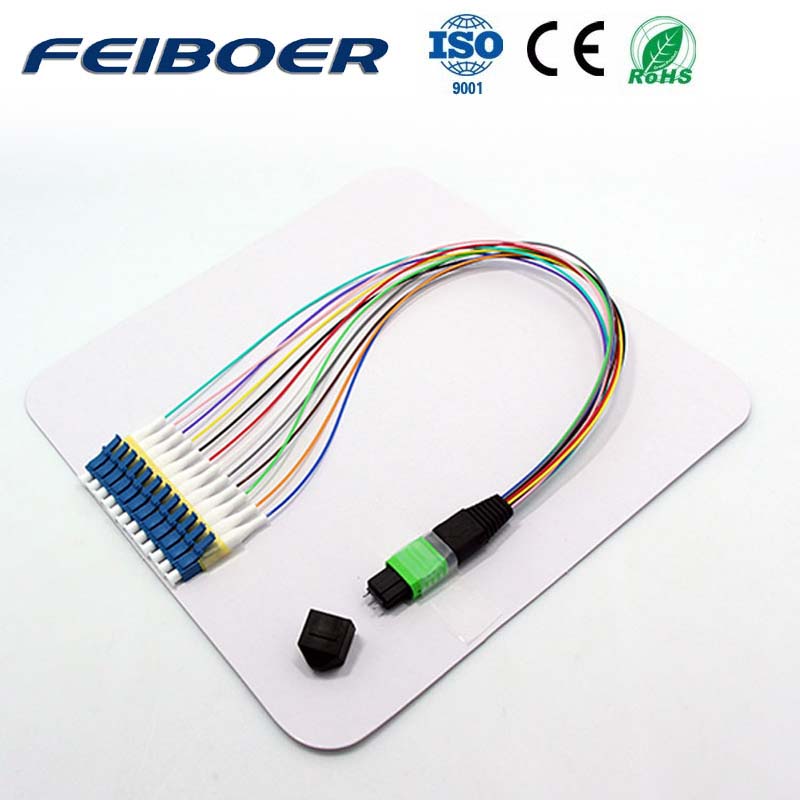

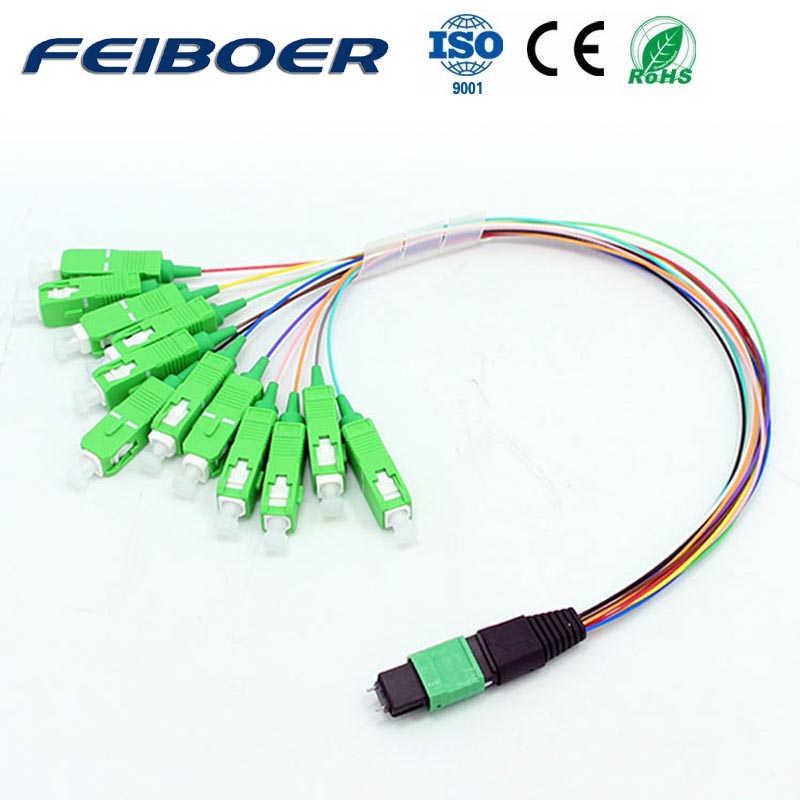

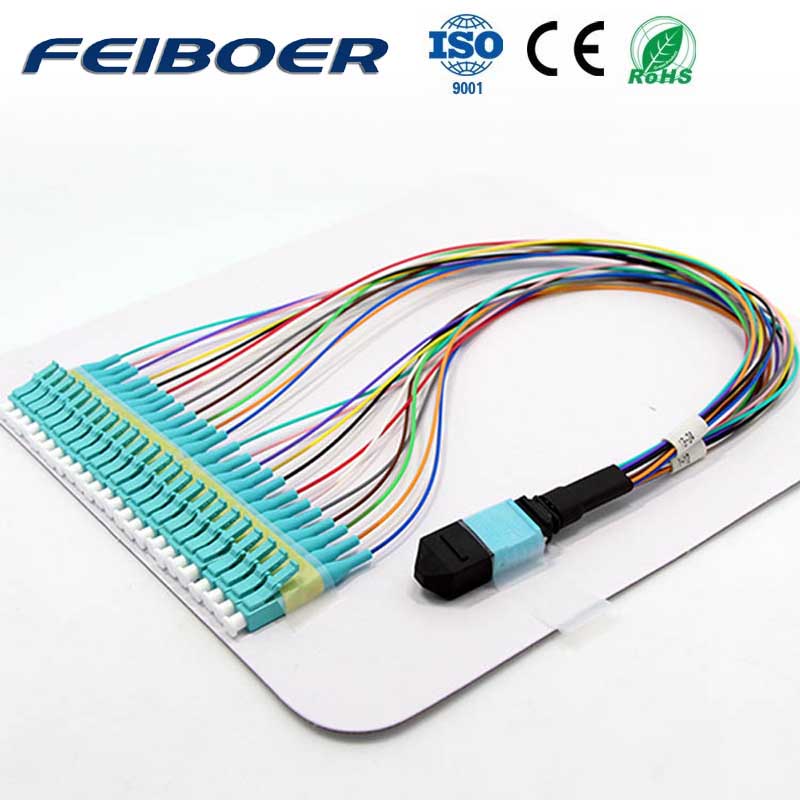

8/12/24cores MTP-LC/SC/FC/ST Fan-out 0.9mm 35cm patch cable for MPO LGX module are terminated with MTP and LC/SC/FC/ST connector on each end.
Q1：Are you the real manufacturer?
A1：Yes. We are the real manufacturer with 15+ years'history.Have the best price from the factory.
Q2：Can you put my brand name (logo) on these products?
A2：Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q3：Can you accept small order?
A3：Yes, small order is available .We support new project of our customers as we know business is always from small order.
Q4：Can you provide us more other products to us to help us to save more shipping costs?
A4: Yes. OPGW cable,ADSS cable,ACSR Cable,FTTH Drop cable,outdoor fiber cable,indoor fiber cable,fiber cable Accessories,patch cord,pigtail,Air blow fiber cable is the main products line of Factory.
Q5：What is your delivery time?
A5：Usually within 10 working days.
Q6：What about your annual production capacity?
A6：Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
If you have any questions, please contact us by email and we will contact you as soon as possible. We look forward to your inquiry.
8/12/24cores MTP-LC/SC/FC/ST Fan-out 0.9mm 35cm patch cable for MTP LGX module are terminated with MTP and LC/SC/FC/ST connector on each end.
Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
Structured cabling per TIA-568-C
Optical Internetworking Forum (OIF) Compliant
10G Fiber Channel Compliant
40G and 100G IEEE 802.3
Other connectors' Industrial Standard:
· SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.
· LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
· FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973
· ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.
· Low insertion loss, high return loss
· MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
· Economical solution for mass-termination of fiber
· Designed for low loss and standard loss SM and MM applications
· Ruggedized round cable, oval cable and bare ribbon options available
· Color coded housings available to differentiate fiber type, polish type and/or connector grade
· Good in repeatability and exchangeability
· 4,8,12,16,24 cores
· Fanout connector can be SC,FC,LC,ST,E2000 etc
High Quality MPO Cable Guarantee
1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2. 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies.
MTP patch cord’s Specification:
Singlemode (APC 8 degree polish)
Multimode (PC Flat polish)
Insertion loss (LC/SC/FC/ST)
<0.3dBtypical change, 200 matings
-40 to + 85°C
MPO Interference index
Max. Core Dip(nm)
We have a faster recovery rate.
We have a professional technical team.
The company has a number of cable production lines.
