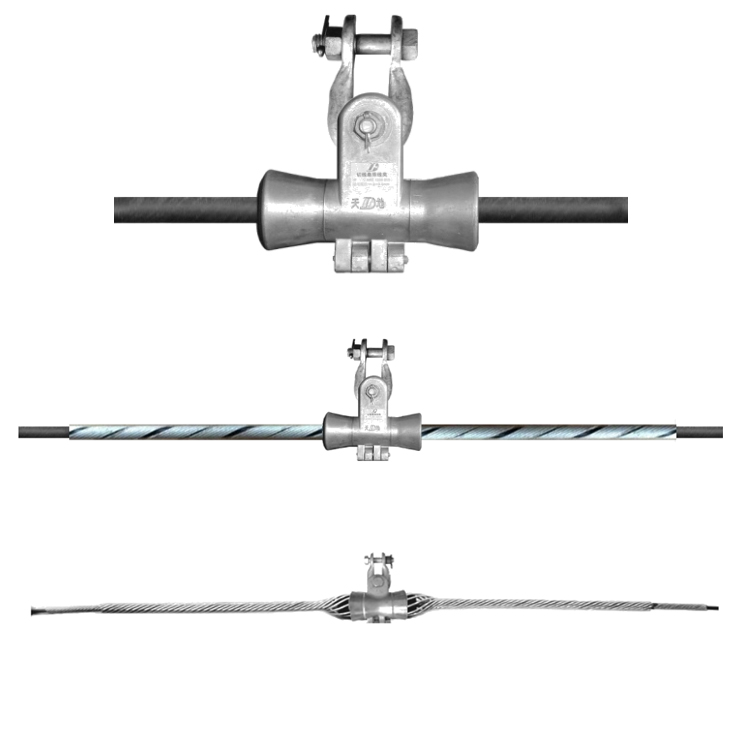

The Preformed Suspension Clamp is the connecting hardware of ADSS cable which hanging in transmission line pole (tower). It can reduce static stress at the support point, improve cable ant-vibration ability, and cushioned against the dynamic stress of Aeolian vibration. as well as ensure that the cable bending will not exceed the permissible values, make the cable does not produce bending stress, so that the fiber optic don’t produce extra loss in the cables.
Q1：Are you the real manufacturer?
A1：Yes. We are the real manufacturer with 15+ years'history.Have the best price from the factory.
Q2：Can you put my brand name (logo) on these products?
A2：Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q3：Can you accept small order?
A3：Yes, small order is available .We support new project of our customers as we know business is always from small order.
Q4：Can you provide us more other products to us to help us to save more shipping costs?
A4: Yes. OPGW cable,ADSS cable,ACSR Cable,FTTH Drop cable,outdoor fiber cable,indoor fiber cable,fiber cable Accessories,patch cord,pigtail,Air blow fiber cable is the main products line of Factory.
Q5：What is your delivery time?
A5：Usually within 10 working days.
If you have any questions, please contact us by email and we will contact you as soon as possible. We look forward to your inquiry.
The Preformed Suspension Clamp is the connecting hardware of ADSS cable which hanging in transmission line pole (tower). It can reduce static stress at the support point, improve cable ant-vibration ability, and cushioned against the dynamic stress of Aeolian vibration. as well as ensure that the cable bending will not exceed the permissible values, make the cable does not produce bending stress, so that the fiber optic don't produce extra loss in the cables.
Structure and Material:
Housing--- It is made of corrosion resistance cast aluminum alloy, which is stable, better anticorrosive in aero and mechanical performance.
Rubber Insert--- It consists of high-class rubber and center reinforcing assembly, rubber insert is with ozone resistance, chemical resistances, weather resistance performance, with high and low temperature performance, high strength and elasticity, small compression deformation. Bolt, Flat Washer, Spring Washer, Nut, Split Lock, Shackle--- Standard Parts of Electric Power.
Inner Preformed Rods---According to the mechanical performance and chemical composition to custom-made the aluminum alloy wire, with high tensile strength, hardness strength and excellent elasticity and strong rust resistance , it can be used for a long time in the bad weather condition.
Outer Preformed Rods--- The same as the Inner Preformed Rods.
1. It is designed to connect straight or elevation angel less than 25° pole (tower) and ADSS cables, The special specification: one unit per pole.
2. Select the specification model for Suspension Clamp is corresponding to the appropriate Cable Diameter, Load Weight or span length.
Short Span Tangential Suspension Clamp for ADSS Cable
Recommended Span Length: ≤100m
Specification Model (Without Preformed Rods)
Suitable Cable Diameter (mm)
AXJ 1110 010
AXJ 1330 010
AXJ 1550 010
AXJ 1770 010
One set of Tangential Suspension Clamp includes Housing, Rubber Insert and a Shackle U-4.
